NTOPCon Bifacial Module

515W Flexible Solar Panel

Lightweight:Optimized composite materials, 60% lighter at the same power;Flexible:Special manufacturing process and materials provide bending ability; Excellent Appearance and Performance:Esthetics module design, no flare effect, “0” risk of micro crack; Easy transportation and installation:Original design making it far less costly for transportation and installation; Customization:Customization for various senarios, high additional value;  Superior Low Irradiance Performance:Excellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days.

  • Brand:

    SEA FOREST
  • Item NO.:

    515W Flexible
  • Order(MOQ):

    20GP
  • Payment:

    T/T , L/C
  • Product Origin:

    China
  • Color:

    Silver
  • Shipping Port:

    SHANGHAI
  • Lead Time:

    25-35days

Product Name: 515W Flexible Solar Panelglass-free flexible solar panel

Applicable standards:.

  • IEC61215:2016
  • IEC61730:2016
  • UL1703 (USD)

Flexible Mono Solar Panels’ Features:

  • Lightweight:Optimized composite materials, 60% lighter at the same power
  •
  • FlexibleSpecial manufacturing process and materials provide bending ability
  •
  • Excellent Appearance and PerformanceEsthetics module design, no flare effect, “0” risk of micro crack
  •
  • Easy transportation and installationOriginal design making it far less costly for transportation and installation
  •
  • CustomizationCustomization for various senarios, high additional value
  •
  • Superior Low Irradiance PerformanceExcellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days



SEA FORESTs Certificates



PV Solar Panels Linear Performance Warranty


12 Years Guarantee on product materail and workmanship

25 Years Linear Power output warranty


Specifications

Electrical Properties / STC*

Peak Power(Pmax)

515W

Maximum Power Voltage(Vmp)

40.2V

Maximum Power Current(Imp)

    12.85A

Open Circuit Voltage(Voc)

48.3V

Short Circuit Current(Isc)

13.48A

Module Efficiency(%)

19.16%

*STC: Irradiance 1000 W/m², AM1.5, Cell Temperature of 25°C

The data above is for reference only and the actual data is in accordance with the pratical testing



Maximum System Voltage(V)

1500V DC

Maximum Series Fuse Rating(A)

25A

Power Tolerance

0+5W

Operating and Storage Temperature()

-40+85



Temperature Coefficient

Pmax Temperature Coefficients(W/)

-0.380%

Voc Temperature Coefficients(V/)

-0.280%

Isc Temperature Coefficients(A/)

+0.020%

NOCT Nominal Operating Cell Temperature()

41±2


Mechanical characterisrtics

Cell Type

182mm Mono

No. of Cells

144

Dimensions

2246*1197*3

Weight

9.1kg

Frame

Frameless

Backsheet

white

Junction box

IP68

Output cables*

4mm² cable

Connector

MC4 Compatible

*Cable length can be customized

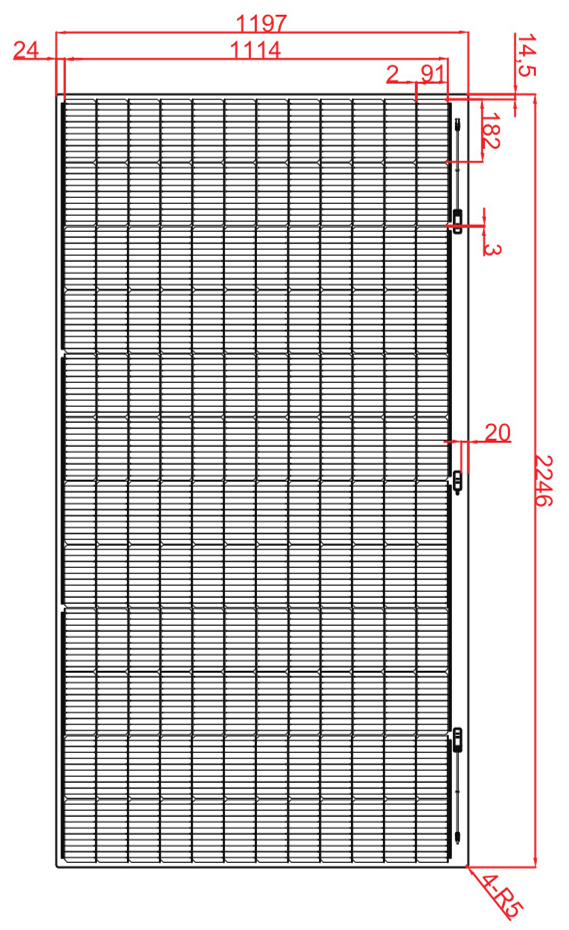

Engineering Drawing unitmm




IV Cure



Packaging Configuration

Packing Type

20'GP

40'HQ

Pallet/Container

70

70

Piece/Container

350

700


Project

Ultra-light & Flexible Solar Modules 370W

Ultra-light & Flexible Solar Panels 370W


*The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,SEA FOREST reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
