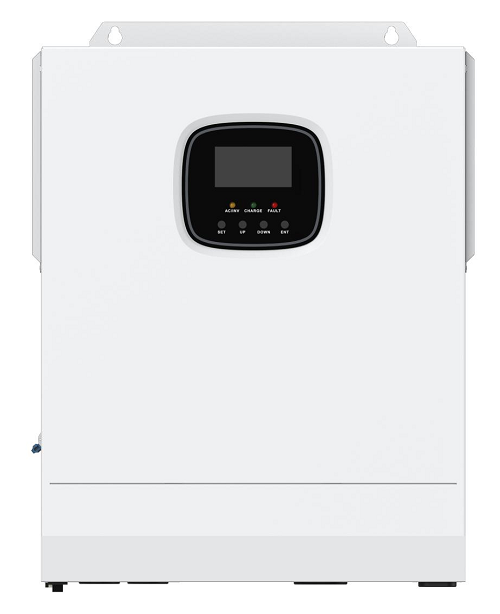

5KW Off Grid Solar Inverter for Solar System

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine ware inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

Brand:
SEA FOREST
Item NO.:
5000U
Order(MOQ):
1
Payment:
T/T , L/C
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
25-35days

Inquiry now

Product Detail

Product: 5KW Off Grid Solar Inverter for Solar System

Introduction

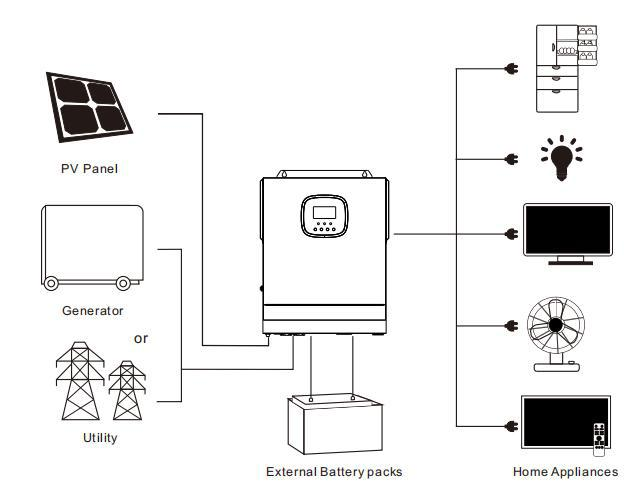

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi/GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

Features

Product Overview

Specifications

Model	5000U	Can be set
INVERTER OUTPUT
Rated output power	5000W
Max.peak power	11000VA
Rated ourput voltage	120Vac	Yes
Load capacity of motors	4HP
Rated ac frequency	50HZ/60HZ	Yes
Waveform	Pure sine wave
Switch time	10ms(typical)
BATTERY
Battery type	Lead-acid / Li-ion / User defined	Yes
Rated Battery Voltage	48V
Voltage Range	40～60Vdc	Yes
Max. MPPT Charging Current	80A	Yes
Max. Mains/Generator Charging Current	40A	Yes
Max. Hybrid Charging Current	80A	Yes
PV INPUT
Num. of MPPT Trackers	1
Max.PV Array Power	6,000W
Max.Input Current	22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	120-450Vdc
UTILITY/ GENERATOR INPUT
Input Voltage Range	90～140Vac	Yes
Frequency Range	50/60Hz
Bypass Overload Current	63A
EFFICIENCY
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	92%
GENERAL
Dimensions	426322126mm (1.401.060.41ft)
Weight	11.6kg (25.57lb)
Protection Degree	IP20, indoor onIy
Operating Temperature Range	-10℃~55℃
Noise	≤60dB
Cooling Method	Forced air cooling with adjustable air speed
Warranty	18 Months
COMMUNICATION
Embedded Interfaces	RS485 / USB / Dry contact	Yes
External Modules（Optional）	Wi-Fi / GPRS	Yes
CERTIFICATION
Safety	CE(IEC 62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA
EMC	EN61000
RoHS	Yes
