NTOPCon Bifacial Module

10BB HALF-CELL Light-Weight Double Glass Monocrystalline PERC PV Module

Excellent cells efficiency,Better Weak Illumination Response,Anti PID,High wind and snow resistance,30 years power warranty,Easy to install

  • Brand:

    SEA FOREST
  • Item NO.:

    530M-144
  • Order(MOQ):

    40HQ
  • Payment:

    T/T , L/C
  • Product Origin:

    China
  • Color:

    Silver/Black
  • Shipping Port:

    NINGBO
  • Lead Time:

    25-35days

Product Name: 10BB HALF-CELL Light-Weight Double Glass Monocrystalline PERC PV Module

144 Half cut cells 450W Monocrystalline Solar Photovoltaic Panels

Applicable standards:Mono PERC Solar Panel meet the requirements for the following

  • IEC61730-1 (safety certification)
  • IEC61730-2 (safety certification)
  • IEC61215 (performance certification)


PERC Solar Modules Features

Excellent cells efficiency:MBB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.

Better Weak Illumination Response:More power output in weak light condition, such as haze, cloudy, and morning

Anti PID:Limited power degradation caused by PID effect is guaranteed under strict testing condition for mass production

High wind and snow resistance:5400 Pa snow load / 2400 Pa wind load

30 years power warranty:After 30 years our solar panel keeps at least 80% of its initial power output

Easy to install:Frame design makes module compatible with all racking and installation methods


Certificates



Solar Panels Linear Performance Warranty


12 Years Guarantee on product materail and workmanship

30 Years Linear Power output warranty


Specifications

Electrical Properties / STC*

Peak Power(Pmax)

530W

Maximum Power Voltage(Vmp)

41.00V

Maximum Power Current(Imp)

12.94A

Open Circuit Voltage(Voc)

49.30V

Short Circuit Current(Isc)

13.66A

Cells Efficiency(%)

22.30%

Module Efficiency(%)

20.74%

*STC (Standard Test Condition): Irradiance 1000W/m², Module Temperature 25℃, AM 1.5

*Measuring tolerance: ±3%

The data above is for reference only and the actual data is in accordance with the pratical testing


Electrical Properties / NOCT*

Peak Power(Pmax)

396.30W

Maximum Power Voltage(Vmp)

38.20V

Maximum Power Current(Imp)

10.39A

Open Circuit Voltage(Voc)

46.10V

Short Circuit Current(Isc)

11.03A

*NMOT(Nominal module operating temperature):Irradiance 800W/m²,Ambient Temperature 20℃,AM 1.5,Wind Speed 1m/s


Operating and Storage Temperature()

-40+85

Maximum System Voltage(V)

1500VDC

Maximum Series Fuse Rating(A)

25A

Power Tolerance

0+3%



Temperature Coefficient

Voc Temperature Coefficients(V/)

-0.29%

Isc Temperature Coefficients(A/)

+0.05%

NOCT Nominal Operating Cell Temperature()

44±2

Pmax Temperature Coefficients(W/)

-0.35%

*Do not connect Fuse in Combiner Box with two or more strings in parallel connection *Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.


Mechanical characterisrtics

Cell Type

182mmx91mm Mono PERC

No. of Cells

144(6x24)

Dimensions

2256x1133x35mm(with frame)

Weight

33.5kg

Glass

2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass

Frame

Anodized Aluminium Alloy

Junction box

IP68, 3 diodes

Output cables*

4mm² cable 350mm

Connector

MC4 Compatible

Max Snow Load

5400Pa

Max Wind Load

2400Pa

*Cable length can be customized

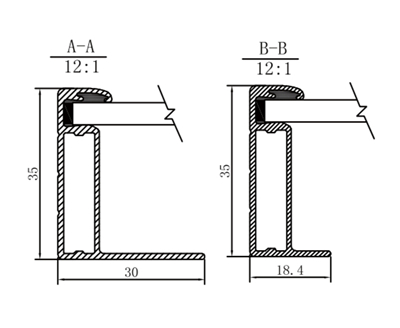

Engineering Drawing unitmm




IV Cure



Packaging Configuration

Packing Type

40HQ container

Piece/Pallet

30pcs

Piece/Container

600pcs



Project

PV solar panels for solar system

sea forest mono crystalline solar panels


*The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,SEA FOREST reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
