NTOPCon Bifacial Module

380W N-type Double Sided Glass Bifacial Mono Solar Panels

380W 120 Half-cut Cells N-type Bifacial High Efficiency Mono Silicon Solar Panel;Additional Power Generation Gain;ZERO LID (Light Induced Degradation) ;Lower LCOE;Better Weak Illumination Response ;Better Temperature Coefficient ;Wider Applicability ;
  • Brand:

    SEA FOREST
  • Item NO.:

    HD120N-380W
  • Order(MOQ):

    1*20FT Container
  • Payment:

    T/T , L/C
  • Product Origin:

    China
  • Shipping Port:

    Shanghai
  • Lead Time:

    35-50days

Product Name: 380W N-type Double Sided Glass Bifacial Mono Solar Panels


Type: 120 Half-cut NTOPCon Cells Bifacial High Efficiency Mono Silicon Double Glass Solar Panel



N-type Bifacial Solar Panel's Features

  • Wider Applicability :

  • BIPV,vertical installation, snowfield, high-humid area, windy and dusty area

  • Better Temperature Coefficient :

  • Higher power generation under working conditions, thanks to passivating contact cell technology

  • Better Weak Illumination Response :

  • Wide spectral response, higher power output evenunder low-light settings like smog or cloudy days

  • Lower LCOE :

  • High power and 1500V system voltage,saving BOS cost

  • ZERO LID (Light Induced Degradation) :

  • N-type solar cell has no LID naturally, can increase power generation

  • Additional Power Generation Gain:

  • At least 30-year product life, more than 10%- 30% additional power gain comparing with conventional module


SEA FOREST's Delivers Reliable Performance Over Time

  • 100% EL inspection ensuring defect-free modules
  • Long term reliability tests
  • Fully automatic facility and world-class technology
  • Leader of n-type bifacial technology


Additional Insurance Backed by Munich Re



N-type Bifacial PV Panels BiLinear Performance Warranty



Electrical Properties / STC*

Testing Condition

Front Side

Front Side

Front Side

Front Side

Front Side

Front Side

Peak PowerPmax(W)

365

370 375 380 385 390

MPP VoltageVmp(V)

34.3

34.5 34.7 34.9 35.1 35.3

MPP CurrentImp(A)

10.65

10.73 10.81 10.89 10.97 11.05

Open Circuit VoltageVoc(V)

41.2

41.4 41.6 41.8 42.0 42.2

Short Circuit CurrentIsc(A)

11.27

11.36 11.45 11.54 11.62 11.69

Module Efficiency%

19.81

20.08
20.36 20.63 20.90 21.17

  *STC: Irradiance 1000 W/m², Cell Temperature 25°C, AM1.5

  The data above is for reference only and the actual data is in accordance with the pratical testing


Electrical Properties / NOCT*

Testing Condition

Front Side

Front Side

Front Side

Front Side

Front Side

Front Side

Peak PowerPmax(W)

276

280 284 287 291

295

MPP VoltageVmp(V)

32.2

32.4 32.5 32.7 32.9

33.1

MPP CurrentImp(A)

8.59

8.65 8.72 8.78 8.84

8.91

Open Circuit VoltageVoc(V)

39.4

39.6 39.8 40.0 40.1

40.3

Short Circuit CurrentIsc(A)

9.09

9.16 9.23 9.30 9.37

9.43

  *NOCT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s


Operating Properties

Operating Temperature)

-40℃~+85℃

Maximum System VoltageV

1500VIEC

Maximum Series Fuse Rating(A)

25

Power Tolerance

0~+5W

Bifaciality*

80%

  *Bifaciality=PmaxrearSTC/PmaxfrontSTC) ,Bifaciality tolerance:±5%



Temperature Coefficient

Temperature Coefficient of Pmax*

-0.320%/℃

Temperature Coefficient of Voc

-0.260%/℃

Temperature Coefficient of Isc

+0.046%/℃

Nominal Operating Cell Temperature (NOCT)

42±2℃

  *Temperature Coefficient of Pmax±0.03%/℃


Mechanical Properties

Cell Type

N-TOPCon Mono 166*83mm

Number of Cells

120枚(12*10

Dimension

1768mm*1042mm*30mm

Weight

24KG

Front /Rear Glass*

2.0/2.0mm

Frame

Anodized Aluminium

Junction Box

IP683 diodes

Length of Cable*

4.0mm²300mm

Connector

MC4 Compatible

Mechanical load

5400Pa

Wind load

2400Pa

Insulation resistance

40MΩ/m2

Withstand voltage

1500V

  *Heat strengthened glass

  *Cable length can be customized

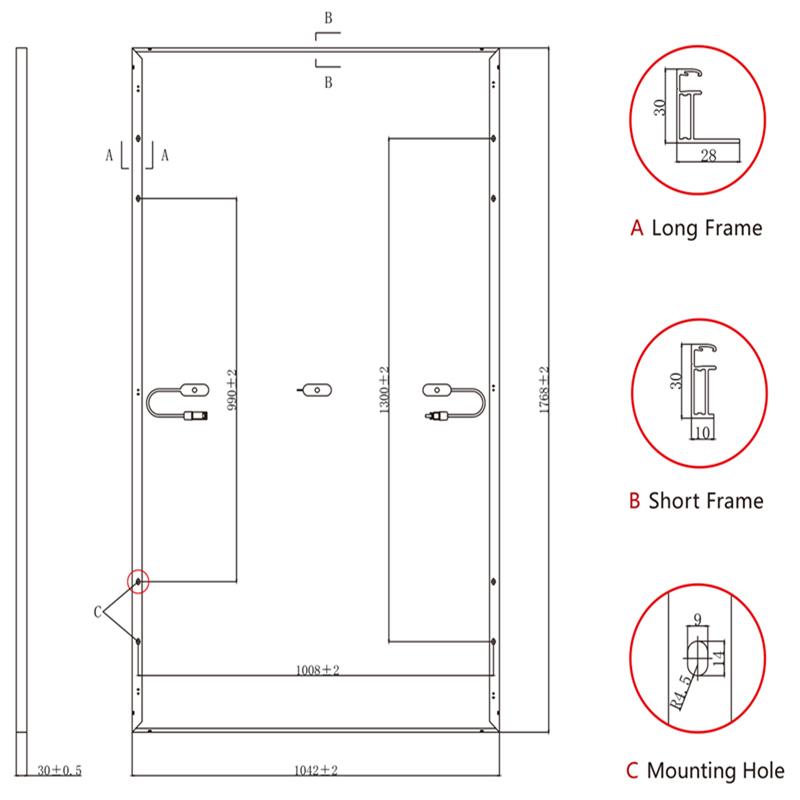

Engineering Drawing unitmm





Characteristic Curves




Packaging Configuration

Packing Type

20'GP

40'GP

40'HQ

Piece/Pallet

35

Pallet/Container

6

12

24

Piece/Container

210

420

840


Project

380W NTOPCon Double Sided Glass Bifacial Mono Solar Panels

High Efficiency Bifacial Mono Silicon Solar PanelN-type Bifacial Mono Solar PV Modules


  *The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,SEA FOREST reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
