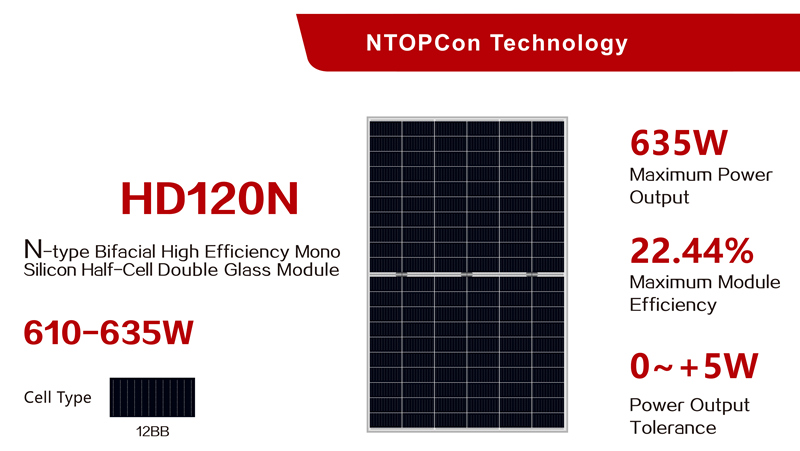

NTOPCon Bifacial Module

635W Ultra-efficient high-power N-type bifacial solar module

210mm N-Topcon bifacial solar cells,Double-sided power generation increases module power 10~30%,ZERO LID and Lower LCOE,Wider Applicability
  • Brand:

    SEA FOREST
  • Item NO.:

    HD120N-635W
  • Order(MOQ):

    1*40FT Container
  • Payment:

    T/T , L/C
  • Product Origin:

    China
  • Color:

    Silver/Black
  • Shipping Port:

    Shanghai
  • Lead Time:

    35-50days

Product Name: 635W Ultra-efficient high-power N-type bifacial solar module


Type: 120 Hlaf-cells(210mm) N-type Bifacial Monocrystalline Silicon Double-sides Glass Solar Panels




Sea forest Delivers Reliable Performance


  • Leader of n-type bifacial technology
  • Fully automatic facility and world-class technology
  • Long term reliability tests
  • 100% EL inspection ensuring defect-free modules




Bifacial Solar Modules Features


  • At least 30-year product life, more than 10%- 30% additional power gain comparing with conventional module
  • N-type solar cell has no LID naturally, can increase power generation
  • High power and 1500V system voltage,saving BOS cost
  • Wide spectral response, higher power output evenunder low-light settings like smog or cloudy days
  • Higher power generation under working conditions, thanks to passivating contact cell technology
  • BIPV,vertical installation, snowfield, high-humid area, windy and dusty area



Additional Insurance Backed by Munich Re



N-type  Solar power cells BiLinear Performance Warranty



Electrical Properties / STC*

Testing Condition


Front Side



Peak PowerPmax(W)


635

MPP VoltageVmp(V)


35.8

MPP CurrentImp(A)


17.74

Open Circuit VoltageVoc(V)


42.6

Short Circuit CurrentIsc(A)


18.76

Module Efficiency%


22.44

  *STC: Irradiance 1000 W/m², Cell Temperature 25°C, AM1.5

  The data above is for reference only and the actual data is in accordance with the pratical testing


Electrical Properties / NOCT*

Testing Condition


Front Side


Peak PowerPmax(W)


480

MPP VoltageVmp(V)


33.6

MPP CurrentImp(A)

14.30

Open Circuit VoltageVoc(V)


40.7

Short Circuit CurrentIsc(A)


15.13

  *NOCT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s


Operating Properties

Operating Temperature)

-40℃~+85℃

Maximum System VoltageV

1500VIEC

Maximum Series Fuse Rating(A)

30

Power Tolerance

0~+5W

Bifaciality*

75%

  *Bifaciality=PmaxrearSTC/PmaxfrontSTC) ,Bifaciality tolerance:±5%



Temperature Coefficient

Temperature Coefficient of Pmax*

-0.320%/℃

Temperature Coefficient of Voc

-0.260%/℃

Temperature Coefficient of Isc

+0.046%/℃

Nominal Operating Cell Temperature (NOCT)

42±2℃

  *Temperature Coefficient of Pmax±0.03%/℃


Mechanical Properties

Cell Type

N-TOPCon Mono 210*105mm

Number of Cells

120枚(12*10

Dimension

2172mm*1303mm*35mm

Weight

35.5KG

Front /Rear Glass*

2.0/2.0mm

Frame

Anodized Aluminium

Junction Box

IP683 diodes

Length of Cable*

4.0mm²300mm

Connector

MC4 Compatible

Mechanical load

5400Pa

Wind load

2400Pa

Insulation resistance

40MΩ/m2

Withstand voltage

1500V

  *Heat strengthened glass

  *Cable length can be customized

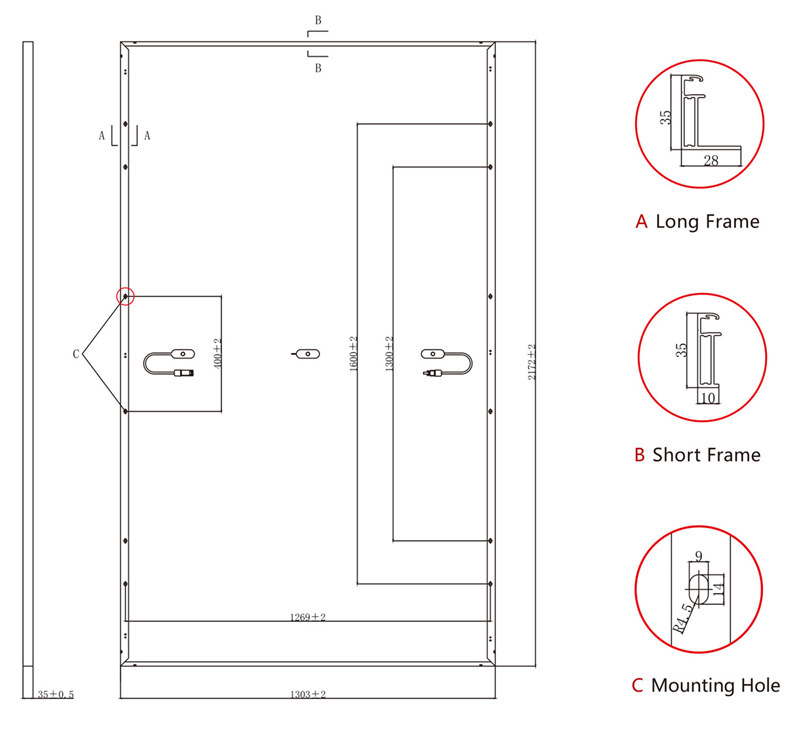

Engineering Drawing unitmm

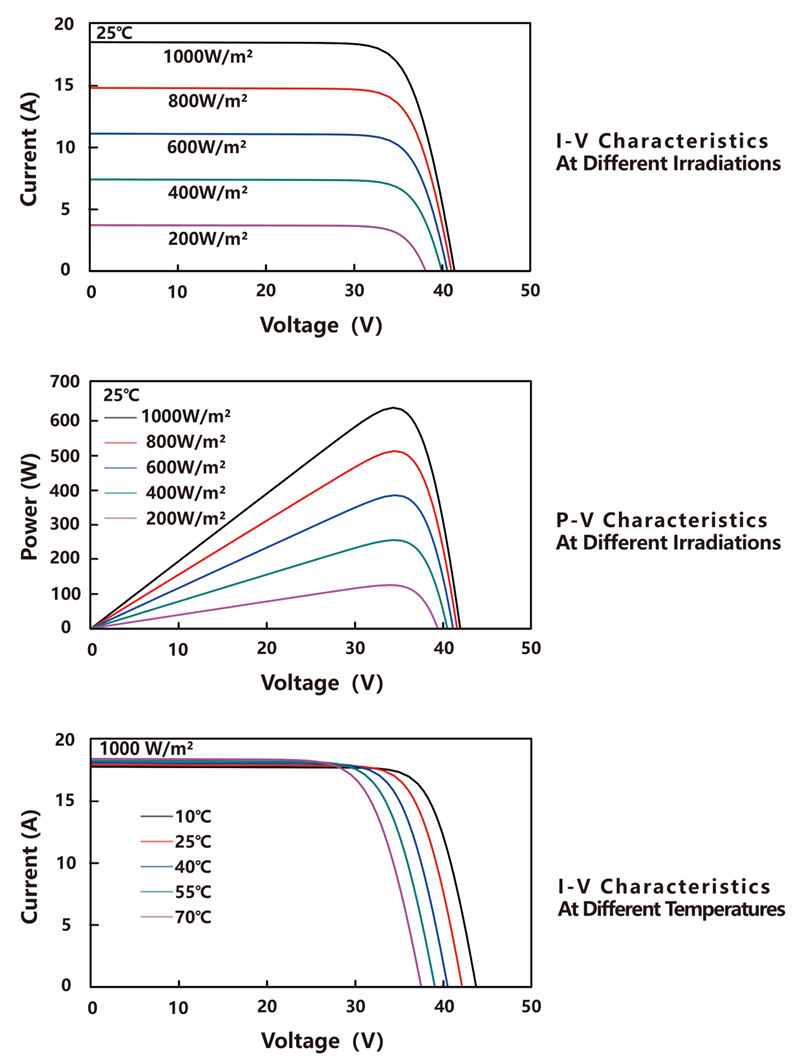

Characteristic Curves




Packaging Configuration

Packing Type


40'HQ


Piece/Pallet

31

Pallet/Container


18


Piece/Container


558



Project

Bifacial solar power panels

bifacial solar pv panels for solar system


  *The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,SEA FOREST reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
